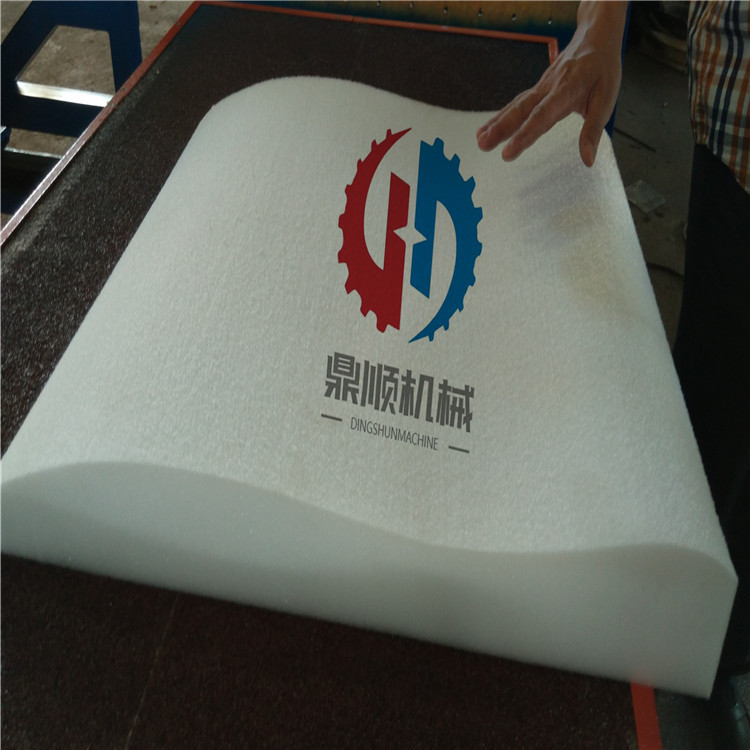

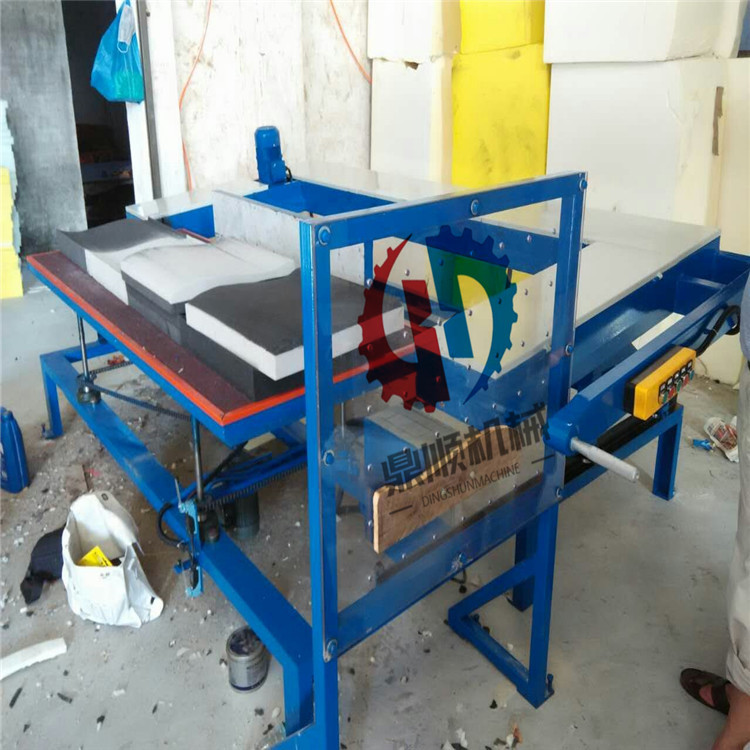

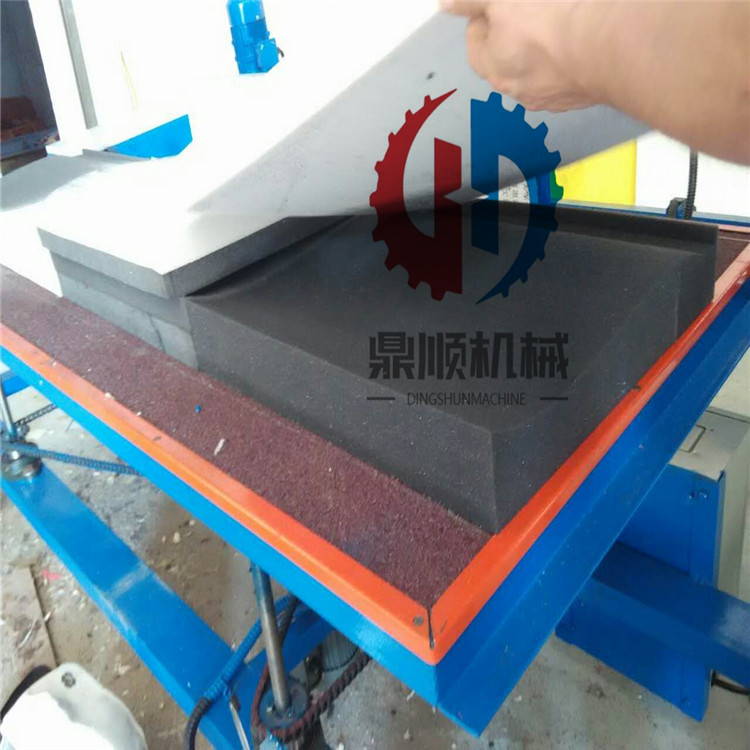

The sponge into various three-dimensional shapes such as arc, cylinder, pillow and so on by adjusting the mold. It is used for furniture, sofa, household articles and other industries. The operation is simple and the cutting is accurate.
SPECIFICATION:
|
1000型 |
1200型 |
||
|
Cutting Foam Size: 有效切割泡綿尺寸: |
W1000*L1000*H600mm |
Cutting Foam Size: 有效切割泡綿尺寸: |
W1200*L1200*H600mm |
|
Cutting Type: 切割方式: |
Wire Cutting Type 線刀切割 |
Cutting Type: 切割方式: |
Wire Cutting Type 線刀切割 |
|
Cutting Speed: 切割速度: |
0-20m/min(Manual Control) 0-20m/分鐘(手動可控) |
Cutting Speed: 切割速度: |
0～20m/min(Manual Control) 0～20m/分鐘(手動可控) |
|
WireLength: 線刀長度: |
L5700mm*Dia1.3mm |
WireLength: 線刀長度: |
L6500mm*Dia1.3mm |
|
Machine N.W.: 機器凈重: |
1000kg |
Machine N.W: 機器凈重: |
1200kg |
|
Total Motor Power: 電機總功率: |
1.5kw |
Total Motor Power: 電機總功率: |
1.5kw |
|
Floor Space: 占地尺寸: |
L2500*W2300*H1200mm |
Floor Space: 占地尺寸: |
L3000*W2500*H1200mm |
